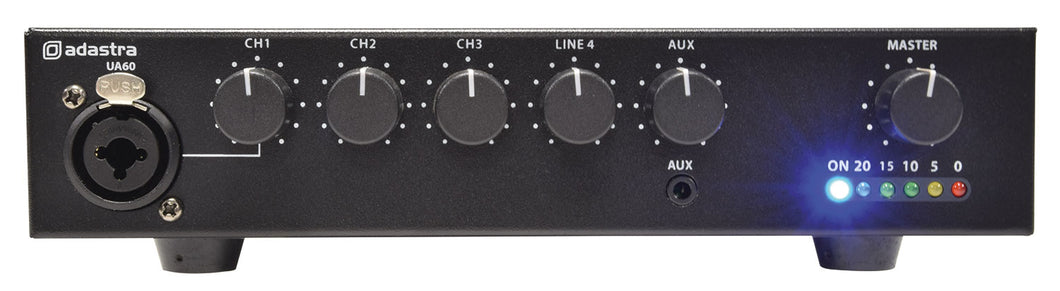

100V mixer-amplifiers with a 5-input mixer in a half width 1U housing. 3 switchable mic/line inputs, an RCA line input and a 3.5mm Aux input are governed by front panel volume controls and a Master output control. Mono output to either 100V line or 8 ohms speaker load is connected via a removable screw terminal connector on the rear panel. Supplied with rack-mounting hardware which can be configured to mount a single unit against a wall or under a worktop. Designed as a versatile solution for small to medium PA installations.Amplifier : construction[tab]Class D + transformer output[br]Inputs[tab]Mic/line (combo), 2 x mic/line (6.3mm), line (RCA), aux (3.5mm)[br]Line output[tab]2 x RCA (mono)[br]Speaker output[tab]Euroblock terminals: 100V / 8 Ohms / Com[br]Mute[tab]24V relay contacts[br]THD[tab]<0.4% @ 1kHz[br]Input impedance[tab]1k Ohms (mic/line)[br]Input sensitivity[tab]-10dB (line), -45dB (mic)[br]SNR[tab]80dB (line), 75dB (mic)[br]Frequency response[tab]100Hz - 18kHz[br]Phantom power[tab]+20V CH1 (XLR or rear terminals)Output power : rms[tab]60W[br]Dimensions[tab]269 x 210 x 44mm[br]Weight[tab]2.47kg[br]Power supply[tab]170-264Vac, 50Hz (IEC)
